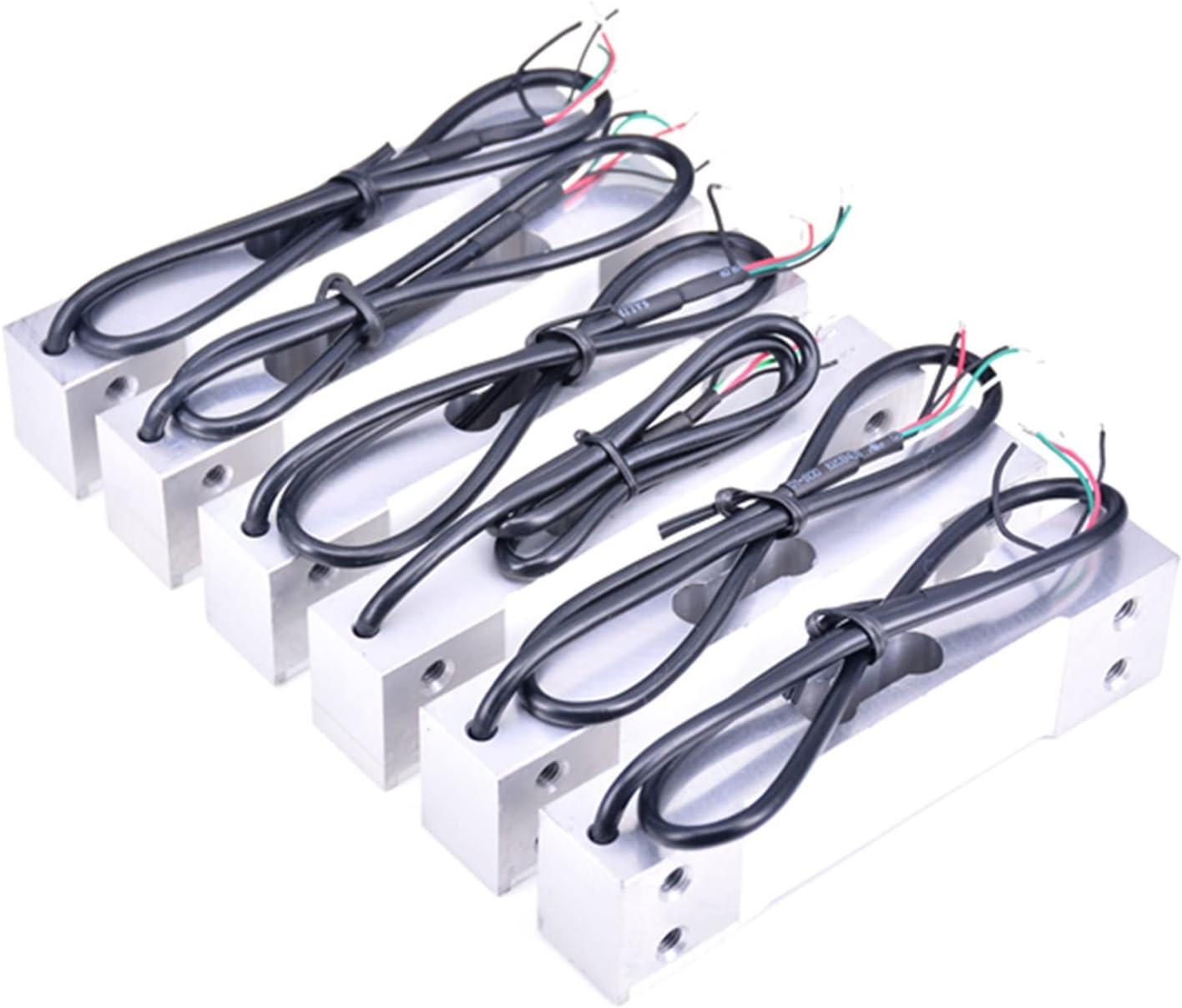

Load Cells, Digital Load Cell Weight Sensor Paralel Beban Sel Sensor, 0-30Kg/66lb Bahan Paduan Aluminium

Parameter: Rated Load (kg): 30 kg; Precision: 0.02; Composition Error (%FS): 0.03; Output rated (MV/V): 2 +/-0.1; Non-linearity (% FS): 0.03; Hysteresis (%FS): 0.03; Repetition :( % FS): 0.01; Zero balance (%FS): +/-1; Input Resistance (ohms): 405 +/-6; Output resistance (ohms): 350 +/-3; Insulation resistance (Mohm) 5000 (100VDC); Excitation Voltage (V): 9-12VDC; compensated. Range (C):-10-+40; Use Temp. Distance(C):-35-+65; temp. Effect at Zero (%FS/10C): 0.03; temp. Effect on SPAN (%FS/10C): 0.03; Safe overload (%FS): 120; Last Overload (%FS): 150; Defend Class: IP65; Cable: Shielding Cable (diameter: 5) Wiring Schematic Diagram: Red: + (Input); White:-(Output); Black:-(Input); Green: + (Output).

• Elections record seales/record hearyscales etc.;
• Recommended Platform size: 250X350mm.
• We have available: 0-3 kg; 5 kgs; 6 kgs, 10 kgs; 15 kgs; 20 kgs; kgs; 40 kgs; 50 kgs; 60 kgs; 100 kgs; 120 kgs; 200 kgs; 350 kgs; 500 kgs.
• Composition Error (%FS): 0.03;
• Output rated (MV/V): 2 +/-0.1;
