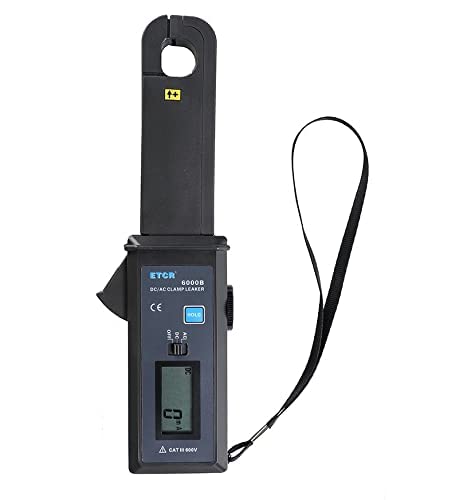

Clamp Meter Tester Gauge Clamp Leakage Current Meter Tester Leakage Current Meter AC DC Current Amp Meter Measures Current AC DC Range 0mA to 60.0A

YFYIQI Clamp Meter Tester Gauge Clamp Leakage Current Meter Tester Leakage Current Meter AC DC Current Amp Meter Measures Current AC DC Range 0mA to 60.0AOverview: *AC/DC Clamp Leakage Current Meter suitable for measuring AC, DC leakage current below 600V, slenderness design of clamp, especially suitable for places with dense flat cable (power metering system, high-speed rail system, automobile circuit maintenance, etc.). * The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by USB interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on. Specification: CT Size: 16mm×18mm Meter Size: 215mm×61mm×32mm Power Supply: Zn-Mn dry battery 6F22 9V（not included） Test Mode: Clamp CT, Range: 0mA～60.0A AC/DC Resolution:1mA AC/DC Accuracy:(23℃±3℃,below 70%RH）; ±2%rdg±5dgt (23℃±5℃，below 75%rh) Display Mode: 4 digits LCD display LCD Dimension: 35mm×21.5mm；display area：32mm×15mm Sampling Rate: about 2 times/s Frequency :AC 45Hz ~ 400Hz Range Shift :Automatically Line Voltage: Line measurement below DC 600V Interface: With interface, storage data can be uploaded to computer, software monitoring Data Storage: 99units, Data Hold: Data hold function: DH symbol display Overflow display: Exceed measure range overflow function: OL symbol display Auto Shut Down: 5 Minutes after power on, the meter shuts down automatically without any operation Meter Weight: 180g Working Current :20mA Working Temperature: -10℃ ~ 50℃,below 80%rh Limit Temperature Error: -10℃～0℃ and 40℃～50℃, the maximum increase in error is 2%rdg Storage Temperature :-10℃ ~60℃,below 70%rh Insulating Strength: AC3700V/rms (between the core and outside shell) Suitable Safety Standard: IEC1010-1、IEC1010-2-032、pollution, etc 2、CAT Ⅲ(600V)

• 1. Measurement of AC/DC current, leakage current, Range： 0mA～60.0A
• 2. Data Storage: 99 groups
• 3. Line Voltage: below 600V
• 4. CT Size: CT Size: 16mm x 18mm
• 5. Measurement of car dark current, leakage current and other AC/DC current, leakage current
