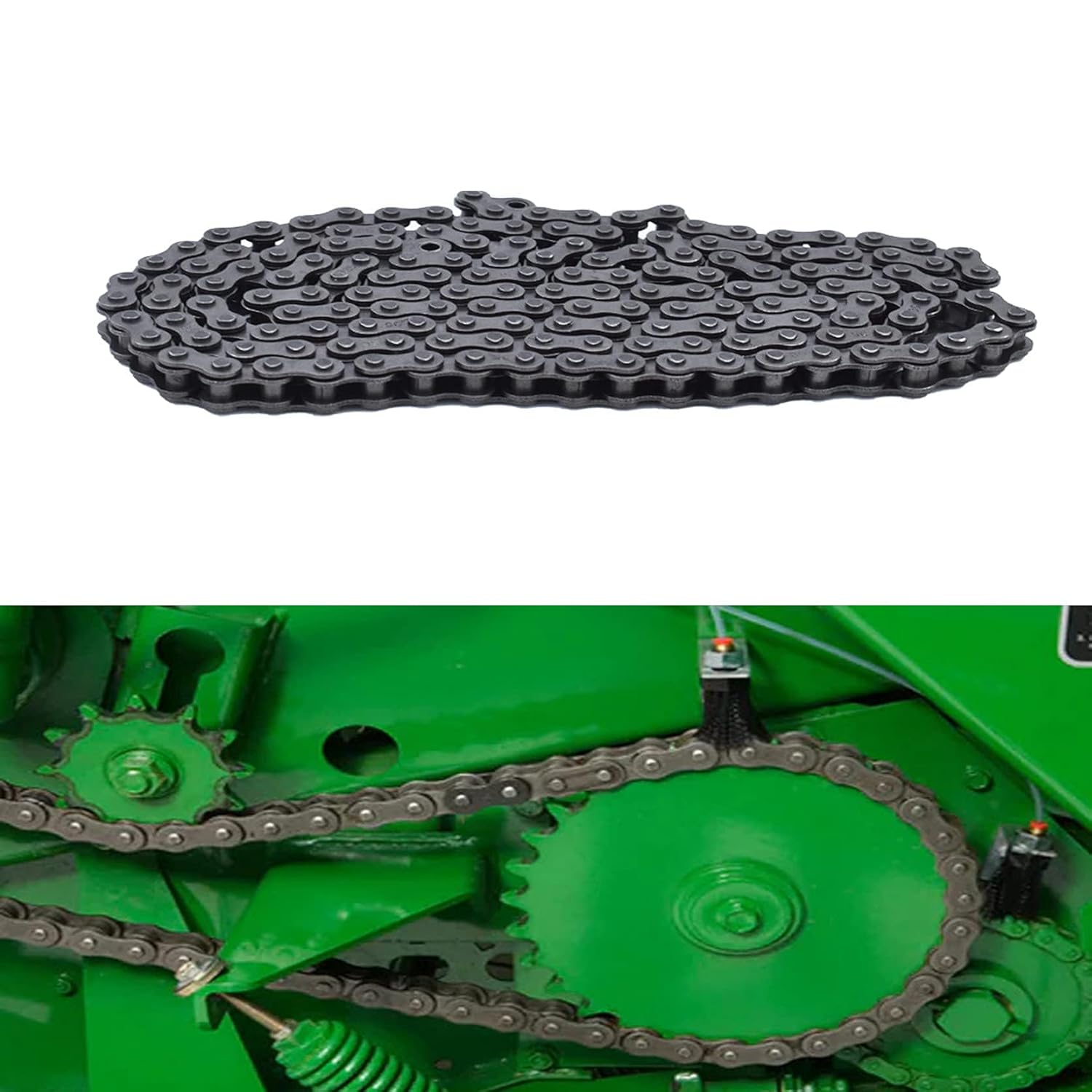

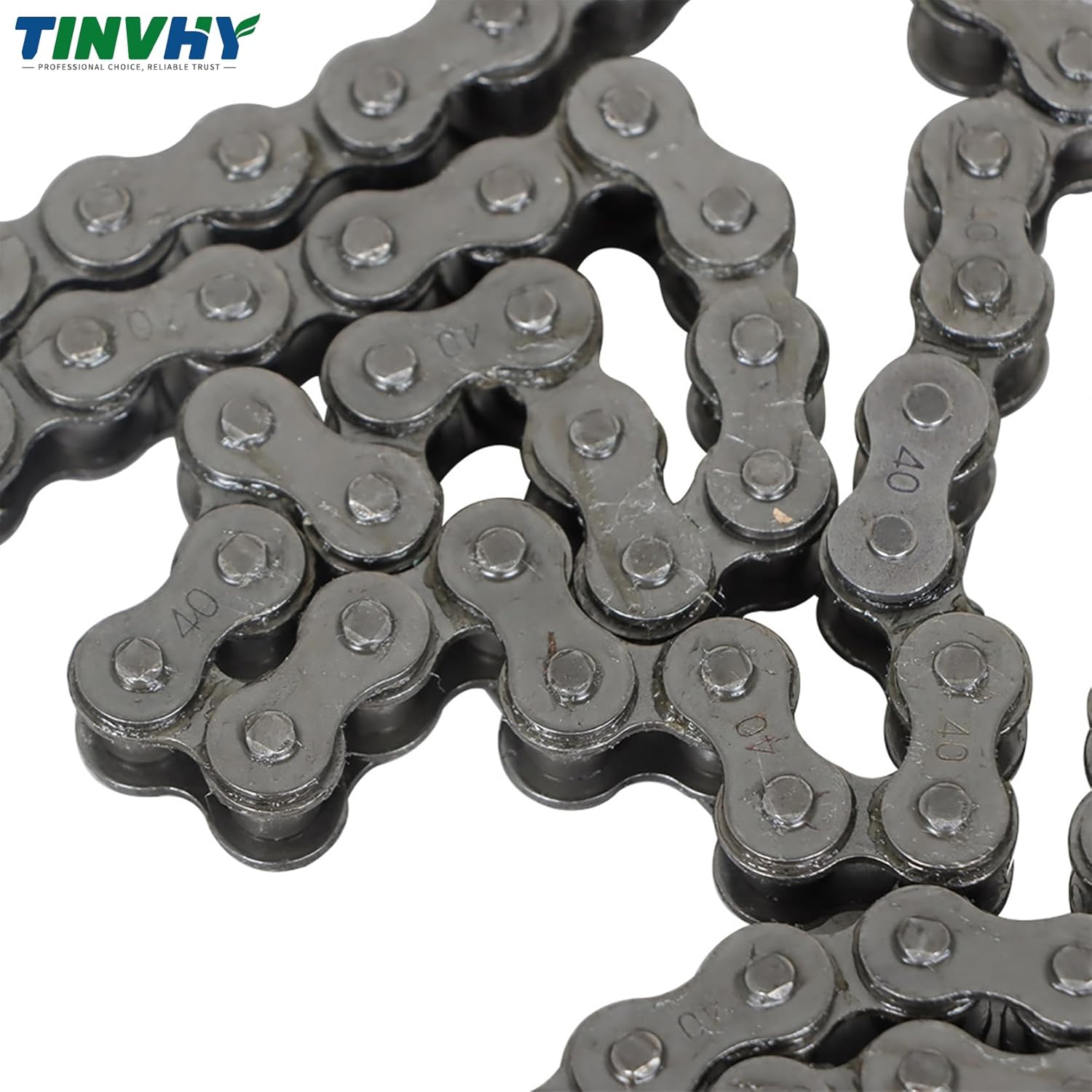

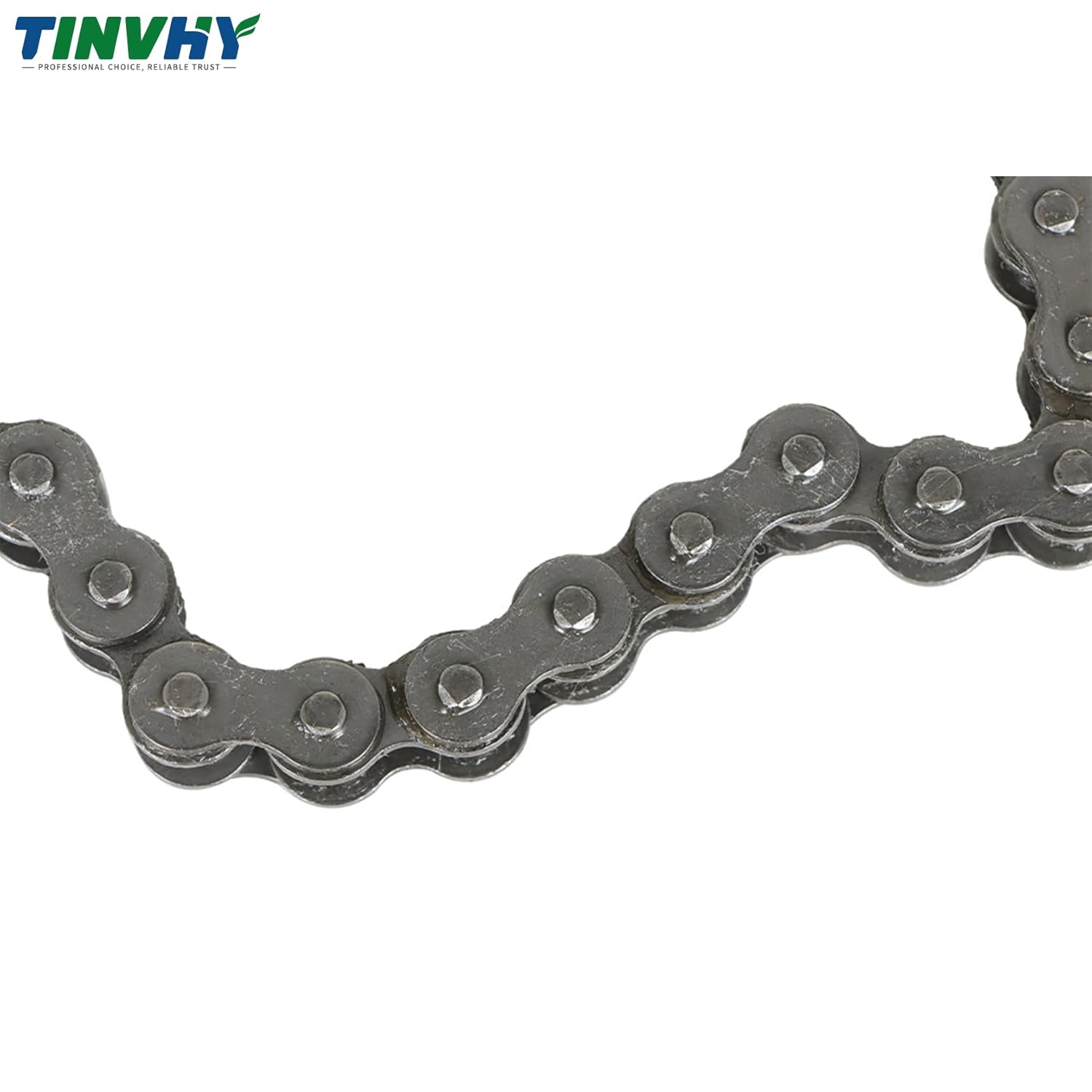

40 Roller Chain 10 Feet with 2 Connecting Links
Product details
| Management number | 218158840 | Release Date | 2026/05/03 | List Price | US$9.06 | Model Number | 218158840 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
40 Roller Chain 10 FeetSpecification:Pitch Size (p) : 0.500 InchRoller Diameter (d1 max) : 0.312 InchWidth Between Inner Plates (b1 min) : 0.309 InchPin Diameter (d2 max) : 0.156 InchPin Length (L max) : 0.654 InchPin Length (Lc max) : 0.701 InchInner Plate Depth (h2 max) : 0.472 InchPlate Thickness (T max) : 0.059 InchAverage Tensile Strength: 4000 lbMaterial: Carbon SteelLength: 10 FeetWeight Per Foot: 0.415 lbs
- Specifications - Length: 10 feet, average tensile strength: 4000 lb
- Material - Made of good quality materials, good quality and long-term use
- Feature - Solid hardened and shot peened precision rollers are standard on most of our chains
- Advantages - It provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth
- Package Includes - 1x 40 Roller chain
| Model | Does not apply |
|---|---|
| Pitch | 0.5 Inches |
| Brand Name | TINVHY |
| Unit Count | 1 Count |
| Item Length | 10 Feet |
| Part Number | Does not apply |
| Strand Type | Single |
| Manufacturer | TINVHY |
| Load Capacity | 4E+3 lbf |
| Material Type | Alloy Steel, Carbon Steel |
| Plate Thickness | 0.06 Inches |
| Roller Diameter | 0.31 Inches |
| Tensile Strength | 4000 Pounds Per Inch |
| Specification Met | ANSI B29.1 |
